• Type 5 | Steam Chemical Integrators • Cycles | For pack control monitoring of all 121~135℃ steam sterilization cycles • Features | Verify the three critical variables required for steam sterilization: time, temperature, and steam.
| Brand | LISTER |
| Sterilization Method | STEAM |
| Product Type | Type 5 |

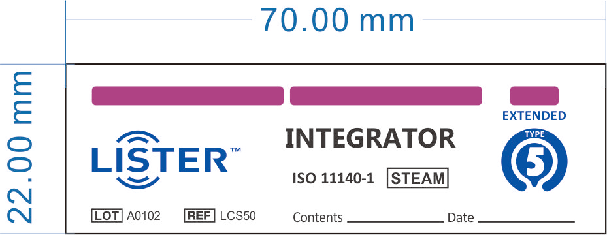

| Size | 2.8"(7cm)wide × 0.9''(2.2cm)long |

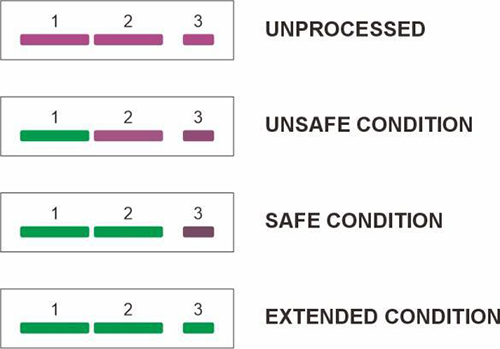

Color Change Conditions
| Line | 121℃ | 135℃ |
| 1 | 3~5min | 0.5~1 |
| 2 | 16.5~20min | 1.2~4min |
| 3 | 30min | 8min |
ILLUSTRATION
| Weight | 80-85g / pack |
| Period of validity | 24 months |
| Compliance | ISO 11140-1:2014 |
| Package | 200pcs/pack |

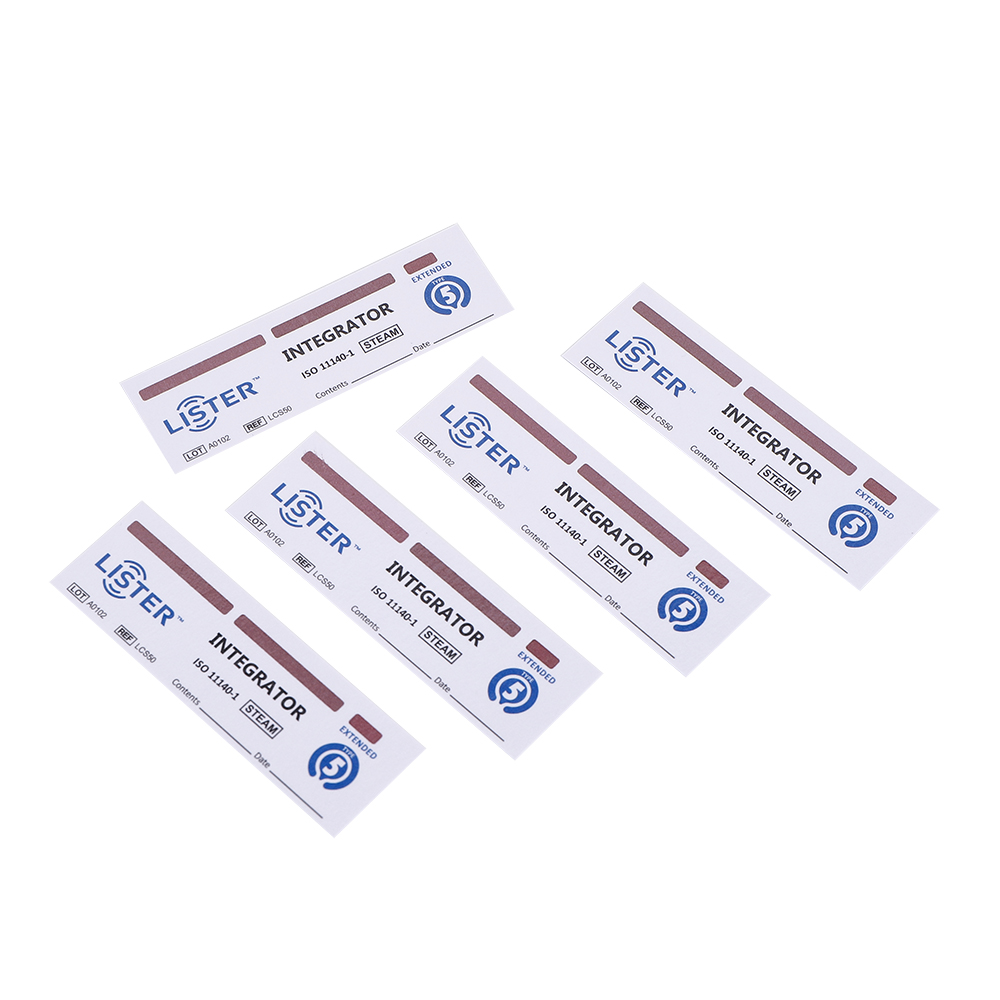

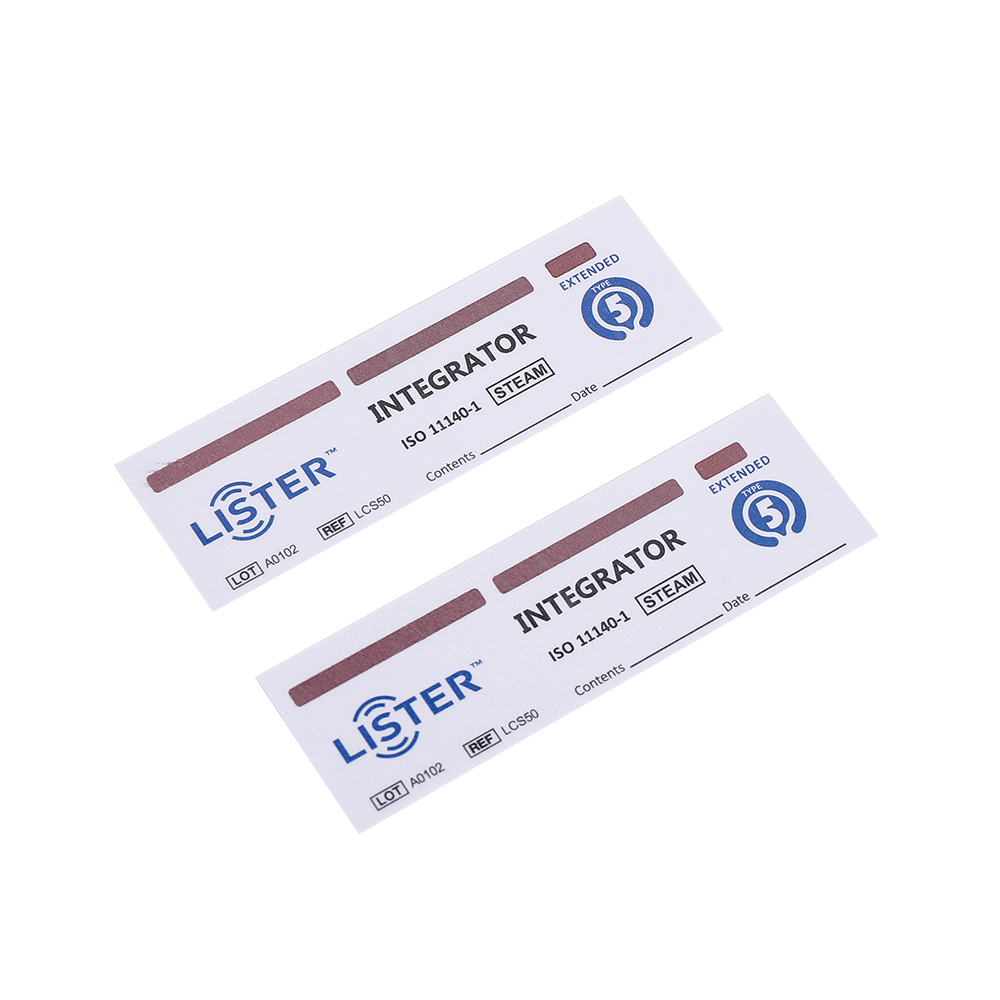

Steam Chemical Integrators – LCS50
• Type 5 | Integrating Indicator
• Cycles | Various gravity, prevacuum, and immediate use steam sterilization (IUSS) cycles
• Features | Distinct red to green color change indicates conditions for IUSS cycles were met
• Compliance | Type 5 Integrating Indicator conforms with ANSI/AAMI/ ISO 11140-1
Use LISTER Steam Chemical Integrators for pack control monitoring of all 121~135℃ steam sterilization cycles.
Related Document Downloads：
Product Brochure of Chemical Indicators.pdf
Technical Data Sheet LCS50.pdf
|
LISTER Steam Integrator LCS50 is a single-use Type 5 Integrating Indicator that complies with ISO 11140-1:2014. It integrates the three critical variables required or steam sterilization: time, temperature, and steam. When processed with a load it indicates, with a margin of safety, whether the proper steam sterilization criteria have been achieved at the point of placement. |
